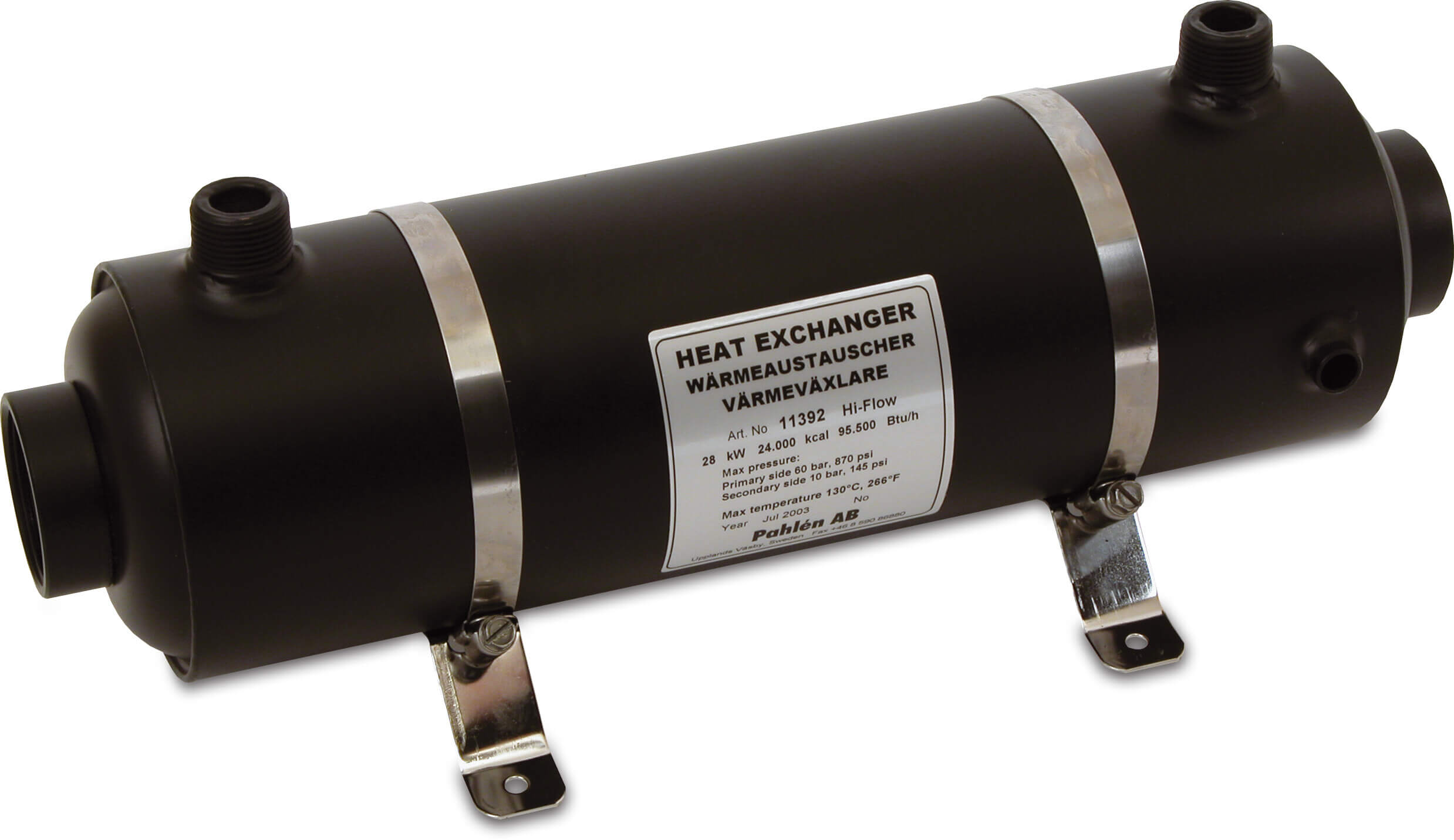

Heat exchanger stainless steel 316 male thread x female thread HF 40

Product number: 0891981

Manuals & drawings

Select your item below or order directly via full product table

Model

HF 28

HF 40

HF 75

Capacity kW/h at ∆ t=60°C

28 kWh

40 kWh

75 kWh

All displayed prices are gross. Please log in or contact sales for custom pricing.

Price to pay excl. VAT €1,035.72 / 1 pcs

€1,035.72 / pcs

Price to pay incl. VAT €1,253.22 / 1 pcs

€1,253.22 / pcs

Out of stock, not expected before 21-04-2026

pcs

Box qty:

1 pcs

MSQ:

1 pcs

Fast, free shipping on orders over €350*

Your trade partner in water technology

8.3/10 Read reviews

Technical details

Connection

male thread x female thread
B mm

129
A mm

455
Pressure primary system

30 bar
Flow primary system

60 ltr/min
Pressure secondary system

8 bar
C mm

285
Size secondary system

1 1/2 "
Flow secondary system

300 ltr/min
Material

stainless steel 316
EAN

4019305313292
Part number

0891981

Product description

Hi-Flow is a well-tried and tested heat exchanger with effective heat transfer capabilities. It is intended for swimming pools and other applications where there is a demand for high capacity together with a low-pressure drop. All models can be installed together with boilers, heat pumps, solar panels or other heat sources. These heat exchangers are light and compact. The material used - acid proof stainless steel AISI 316 - is chosen with regard to working conditions where there is a risk of corrosion. Stainless steel adjustable fixings are included. Suitable for chlorine based pools. Horizontal Mounting only.
