Explore DAB product solutions
Six product groups cover the DAB pump solutions available through Bosta. Each links to the matching Bosta category.
Pressure boosting systems
Integrated boosters for homes and larger buildings, and vertical multistage booster units for commercial building services.
ESYBOX Pop, Mini3, ESYBOX, Max, Diver · NKV / NKVE
Self-priming and jet pumps
Surface pumps for garden watering, rainwater reuse and supply from wells, tanks or cisterns.
Jet · Jet Inox · Garden · Euroinox
Borehole pumps
3-inch submersible pumps for wells, tanks and cisterns: domestic pressurisation, garden irrigation and lifting water.
Micra · S4
Drainage and wastewater pumps
Submersible pumps for clear and dirty water, effluent and sewage, plus lift stations. Choose by duty.
Feka · Nova · Drenag · Genix
Controls and drives
Variable frequency drives, and controllers with automatic start/stop and dry-running protection on selected domestic pumps.
Active Driver Plus · Control-D
Electronic circulators
Wet-rotor circulators for heating and cooling circuits, a different pump type from the water-supply pumps.
EVOSTA 2 · EVOSTA 3
Find the right solution for your project
Explore DAB solutions by application – from residential water systems and commercial buildings to agriculture and irrigation.
Residential Building Service
Water pressure, circulation, drainage and wastewater for homes and residential buildings.
Commercial Building Service
Pressure boosting, HVAC circulation, water management and drainage for commercial buildings.
Agriculture & Irrigation
Groundwater extraction, boreholes, irrigation and water supply for agricultural sites.
Popular Dab products

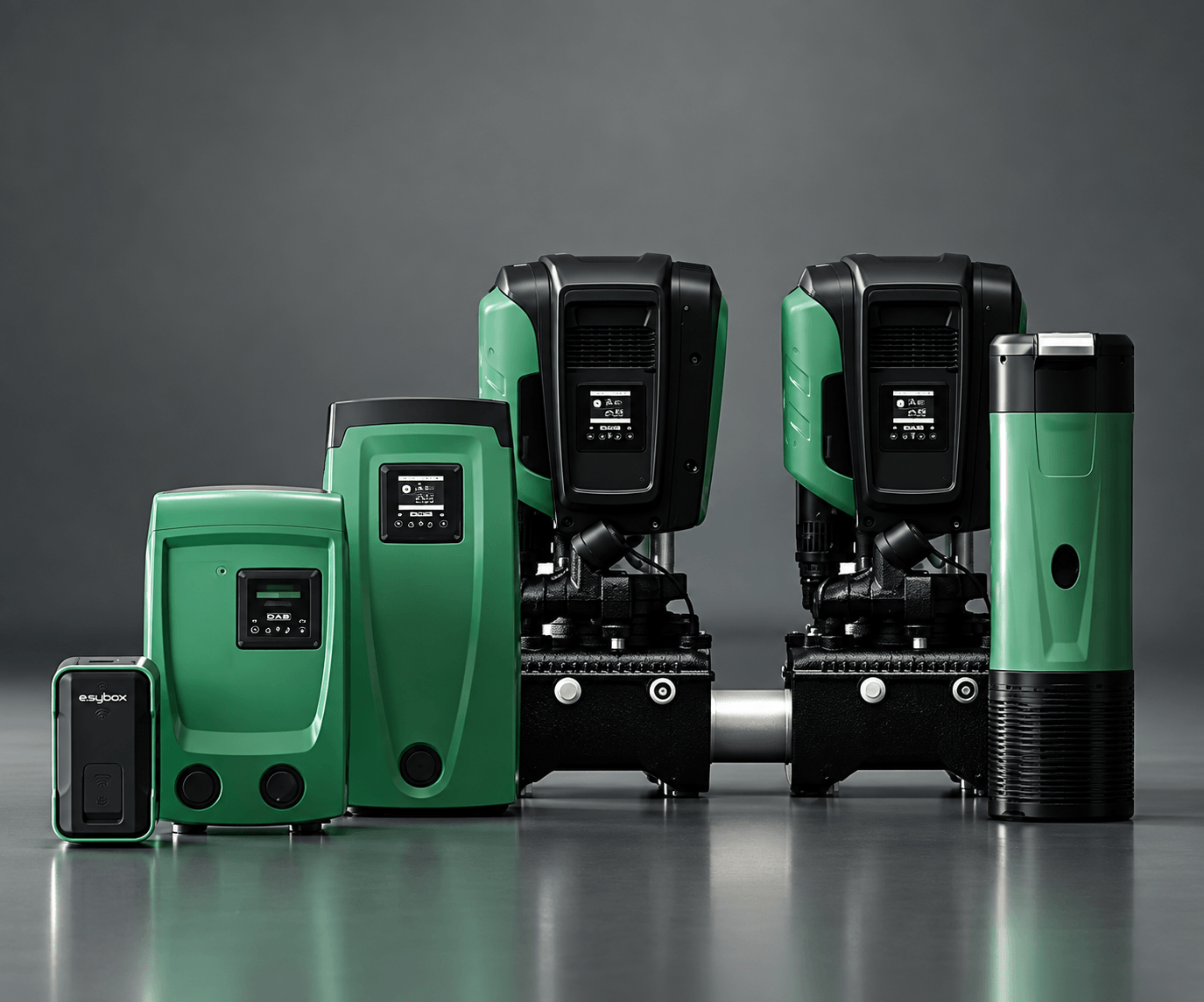

Integrated pressure boosting from DAB
Integrated, electronically controlled pressure boosting. ESYBOX brings the pump, frequency converter, pressure and flow sensors, display and expansion vessel together in a single compact unit – built to cover everything from a single home to a commercial building.
|
Rainwater solutions
From roof to irrigationA rainwater system is more than a pump. Depending on the application, water is collected, filtered and stored before a pump or booster delivers it through pipework to its end use. DAB lists rainwater reuse among the duties of its Garden and Jet self-priming pumps and for the ESYBOX Line. Bosta can supply the other components around the DAB pump, depending on the project. Rainwater is for non-potable uses such as garden irrigation. It is not drinking water. See rainwater harvesting solutions → View the rainwater brochure → |
A typical application-dependent arrangement. Components vary by system. |
More than a pump
DAB provides the pumping technology. Bosta can supply the system around it, depending on your application.
|
Water source
|
→ |
DAB pump
|
→ |
Control / pressure
|
→ |
Pipework / valves
|
→ |
Filtration
|
→ |
Application
|
A typical application-dependent arrangement. Components vary by system.
Pump and controlChoose the DAB pump or booster for your duty, with the drive or controller it needs. |
Pressure and storageBreak tanks, storage tanks and pressure components, depending on how the water is supplied. |
Pipework and valvesSuitable pipe, fittings and valves for the pressure and duty of your installation. |
Application and filtrationFiltration and the final irrigation or rainwater system, matched to the project. |
Compatibility depends on the application. Talk to us about your system.
How to choose the right DAB pump
Pump selection starts with the water source and installation, then the required performance and finally the liquid and control requirements. Confirm the final choice against the individual DAB performance curve and product data.
Source & installationStart with the water source – for example a well, tank, cistern, rainwater store or mains supply – and decide whether the pump needs to be surface-mounted or submersible. |
Duty & performanceDetermine the required flow and the total head or pressure the system needs at the operating point. |
Liquid & controlMatch the pump to the liquid – clean water, rainwater, drainage, effluent or sewage – and check the available power supply and control method. |
Always confirm model selection using the individual DAB product data and performance curve.

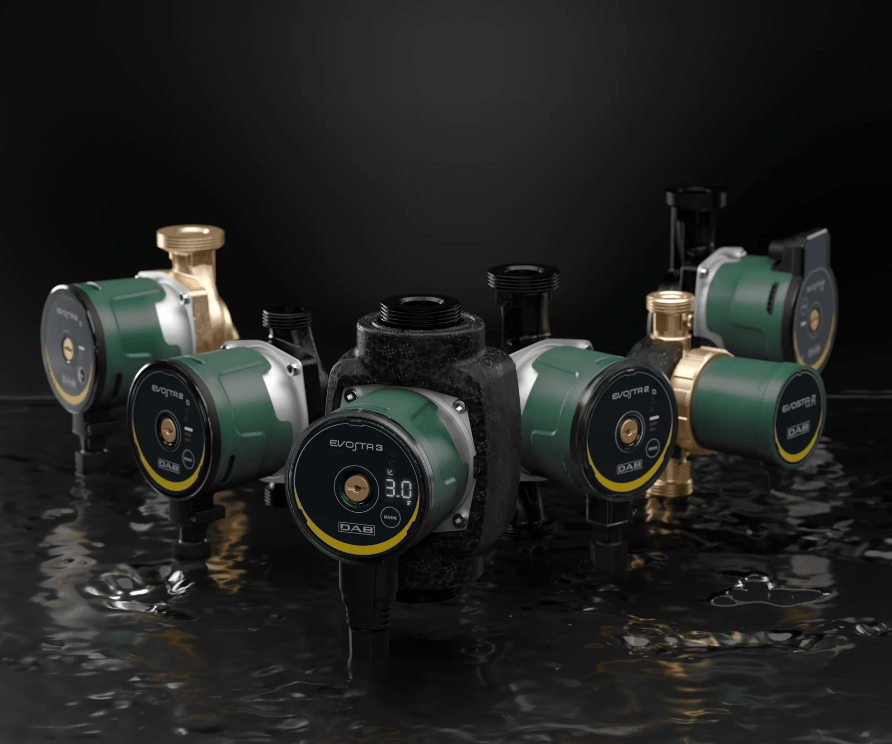

Efficient circulation for heating and cooling systems
A circulator keeps water moving round a closed circuit, such as a heating system. It does not supply or pressurise water, so it is a different job from the pumps above. EVOSTA is DAB's range of wet-rotor electronic circulators.
Available from Bosta: EVOSTA 2 and EVOSTA 3
For heating and cooling circuits. DAB designs EVOSTA 2 for domestic heating and cooling systems.
Mechanical strength, electronic control. DAB describes EVOSTA 2 as combining the robustness of a mechanical circulator with the benefits of an electronic one.
Data at a glance. EVOSTA 3 has a display showing operating data.
DAB Pumps
DAB was established in 1975 and designs water pumping systems for domestic, residential, institutional and commercial use and for agricultural irrigation. It has been part of a multinational pump group since 1996.
|
1975
DAB established
|
1996
Joined a multinational pump group
|
Home to field
Domestic, commercial and irrigation use
|
Frequently asked questions about Dab
Pressure boosting systems, self-priming and jet pumps, borehole and well pumps, drainage and wastewater pumps, controls and electronic circulators. Use the "View all DAB pumps" button for the full list.
Start with the water source and the flow and pressure you need. Then decide between a surface and a submersible pump, and check the model's performance curve.
Yes. DAB offers pumps and pressure-boosting solutions for selected rainwater reuse applications. The appropriate model depends on whether the water is stored in a tank or cistern and on the required flow and pressure. Rainwater is non-potable, and the system must be designed for the duty.
It depends on the model. ESYBOX integrates its control electronics. Some Jet and Garden pumps need a pressure vessel, pressure switch or controller. Control-D adds automatic start/stop with dry-running protection, and Active Driver Plus is a variable frequency drive.
Drainage pumps move clear or dirty water. Wastewater duties such as effluent and sewage involve solids, and grinder pumps cut them so smaller pipes can be used. Check each model's solids passage on its data sheet.
