DAB Micra 50M oil cooling Submersible borehole pump stainless steel 304 1" female thread 3,3A 230VAC with 1m cable
Product number: 7030954
Select your item below or order directly via
full product table
All displayed prices are gross. Please log in or contact sales for custom pricing.
Price to pay excl. VAT
€1,210.00 / 1 pcs
€1,210.00 / pcs
Price to pay incl. VAT
€1,464.10 / 1 pcs
€1,464.10 / pcs
Available from supplier
- please contact sales team
Frequently bought together
0412025
0100723
0100302
0100308
0412103
7021701
7019390

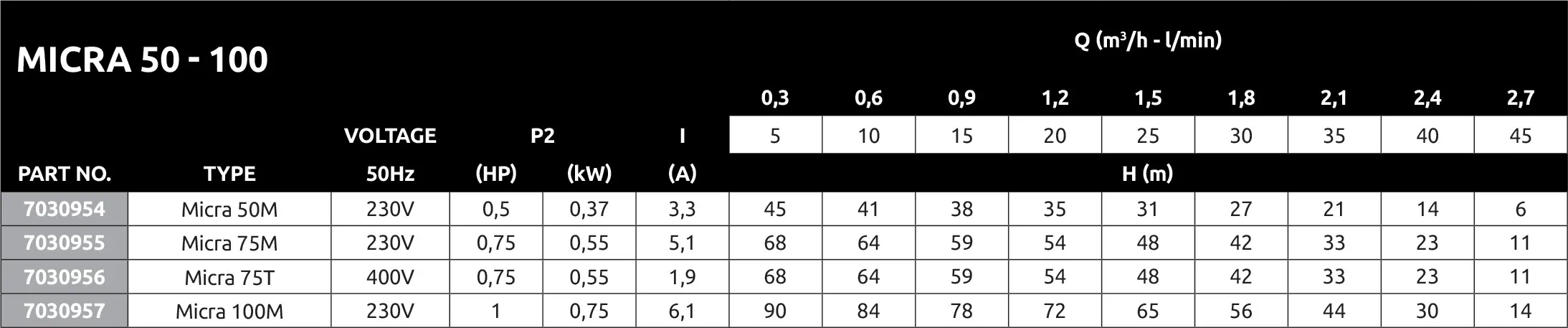

Technical details
-
Modelwith 1m cable
-
Size1"
-
Typeoil cooling
-
Max flow rate2.7 m³/h
-
Outer ø74 mm
-
Max. temperature35 °C
-
Material impeller 1noryl GFN2
-
Press1 "
-
Pump bodystainless steel 304
-
Connectionfemale thread
-
Ampere3,3 A
-
Voltage230VAC
-
IP valueIP68, class F
-
Frequency50 Hz
-
Output Power0,5 HP
-
Materialstainless steel 304
-
Impellers15
-
EAN4019305727181
-
Part number7030954
-
ManufacturerDAB
Dimensions
-
Db74 mm
-
L930 mm
-
L930 mm
-
ØDi-11 "
Product description
Pumped liquid: clean, free of solids and abrasives, non-viscous, non-aggressive, and chemically neutral, with properties similar to water.
Maximum permitted amount of sand: 40 g/m3.
Installation: in 3” wells or larger, tanks and cisterns, vertical position. In case of horizontal installation, ensure a minimum load on the thrust assembly.
Maximum permitted amount of sand: 40 g/m3.
Installation: in 3” wells or larger, tanks and cisterns, vertical position. In case of horizontal installation, ensure a minimum load on the thrust assembly.
