Profec Non return valve ductile iron (GGG40) epoxy coating DN65 DIN flange 10bar DN65 blue PN10/16

Product number: 0401929
Profec Non return valve ductile iron (GGG40) epoxy coating DN65 DIN flange 10bar DN65 blue PN10/16
Profec Non return valve ductile iron (GGG40) epoxy coating DN65 DIN flange 10bar DN65 blue PN10/16

Manuals & drawings

Select your item below or order directly via full product table
Size
All displayed prices are gross. Please log in or contact sales for custom pricing.
Price to pay excl. VAT €233.62 / 1 pcs
€233.62 / pcs
Price to pay incl. VAT €282.68 / 1 pcs
€282.68 / pcs
81 in stock in Veghel, NL - Minimum delivery time: from 3 working day(s)
pcs
Box qty:
1 pcs
MSQ:
1 pcs

Fast, free shipping on orders over €350*

Your trade partner in water technology

8.3/10 Read reviews

Frequently bought together

Profec Adaptor bush PVC-U 40/50 mm x 1 1/4" glue socket/glue spigot x male thread 10bar grey
0110458
Profec Adaptor bush PVC-U 40/50 mm x 1 1/4" glue socket/glue spigot x male thread 10bar grey

€1.81
Greener choice Greener choice
Profec PVC glue 1ltr with brush type THF free label EN/DE/NL/FR
7030488
Profec PVC glue 1ltr with brush type THF free label EN/DE/NL/FR

€25.64
Profec Plug PVC-U 3" male thread 10bar grey
0110608
Profec Plug PVC-U 3" male thread 10bar grey

€13.17
Rain Bird Manifold plastic 1" male thread x male thread x female thread 10bar 12cm black type MTT-100
7021701
Rain Bird Manifold plastic 1" male thread x male thread x female thread 10bar 12cm black type MTT-100

€4.57
NaanDan Mounting device plastic 4/7 mm taper M x push-in 3bar type Flipper
7020935
NaanDan Mounting device plastic 4/7 mm taper M x push-in 3bar type Flipper

€2.62
VDL Pipe clamp PP 200 mm black type F
0100860
VDL Pipe clamp PP 200 mm black type F

€19.43
Mechanical seal 13 x 26 mm type AR13 A
0992041
Mechanical seal 13 x 26 mm type AR13 A

€7.88
Profec Nr. 120 Elbow 45° stainless steel 316 1/4" female thread 16bar
0080026
Profec Nr. 120 Elbow 45° stainless steel 316 1/4" female thread 16bar

€8.37
Profec Wormdrive hose clip stainless steel 304 140 mm x 160 mm type W4 12 mm
0464470
Profec Wormdrive hose clip stainless steel 304 140 mm x 160 mm type W4 12 mm

€5.92
Profec Hose tail adaptor brass 2" x 60 mm male thread x hose tail 30bar
0411777
Profec Hose tail adaptor brass 2" x 60 mm male thread x hose tail 30bar

€46.16

Technical details

  • DIN Standard
    DIN 2501
  • Material
    ductile iron (GGG40)
  • Material housing
    ductile iron (GGG40)
  • Flange
    PN10/16
  • Pressure
    10 bar
  • Opening pressure
    1 bar
  • Material cover
    cast iron GG 40
  • Material seal
    NBR
  • Temperature range
    -20°C - 100°C
  • DN
    65
  • Outer ø
    183 mm
  • Surface treatment
    epoxy coating
  • Length
    240 mm
  • Ball material
    carbon/NBR
  • Colour
    blue
  • Connection
    DIN flange
  • Holes
    4
  • EAN
    4019305392976
  • Part number
    0401929
  • Manufacturer
    Profec

Dimensions

  • Ct-1
    122 mm
  • L
    240 mm
  • PCD
    145 mm

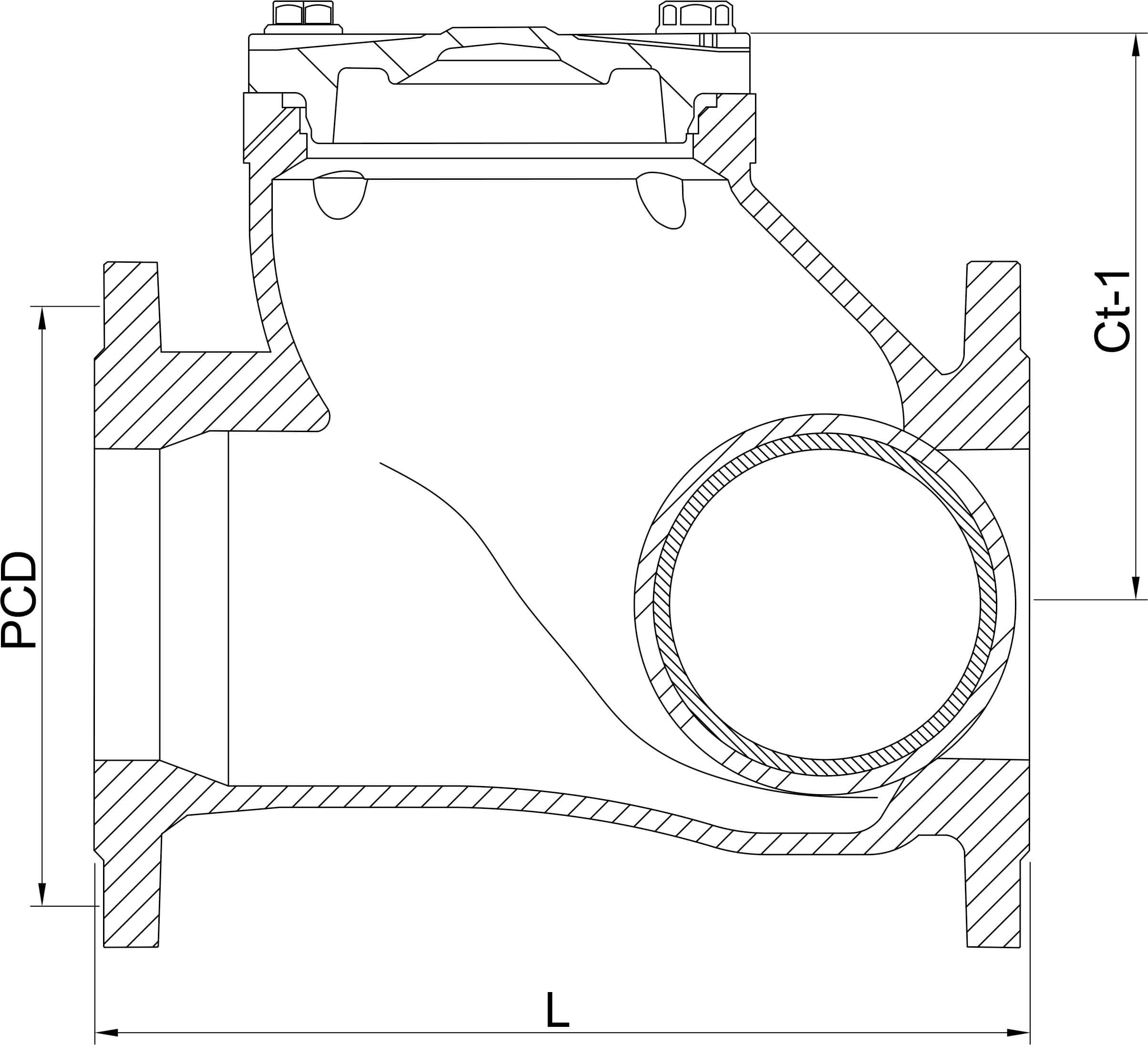

Technical drawing

Similar products

Profec Swing check valve with lifting device ductile iron (GGG40) epoxy coating DN65 DIN flange 16bar DN65 blue PN10/16
Profec Swing check valve with lifting device ductile iron (GGG40) epoxy coating DN65 DIN flange 16bar DN65 blue PN10/16

€164.63
Profec Butterfly valve ductile iron (GGG40) epoxy coating DN65 flange 10bar DN65 blue PN6/10/16 type 600
Profec Butterfly valve ductile iron (GGG40) epoxy coating DN65 flange 10bar DN65 blue PN6/10/16 type 600

€84.34
Profec Butterfly valve ductile iron (GGG40) epoxy coating DN65 flange 10bar DN65 blue PN6/10/16 type 601 disc stainless steel 316
Profec Butterfly valve ductile iron (GGG40) epoxy coating DN65 flange 10bar DN65 blue PN6/10/16 type 601 disc stainless steel 316

€102.14
Profec Gate valve cast iron GGG 50 epoxy coating DN65 DIN flange 16bar blue PN10/16 type 302
Profec Gate valve cast iron GGG 50 epoxy coating DN65 DIN flange 16bar blue PN10/16 type 302

€219.75
Profec Ball valve ductile cast iron GGG40 varnished DN65 DIN flange 16bar blue PN10/16
Profec Ball valve ductile cast iron GGG40 varnished DN65 DIN flange 16bar blue PN10/16

€548.80
Profec Non Return Valve stainless steel 316 DN65 flange 16bar DN65 PN10/16 type 161
Profec Non Return Valve stainless steel 316 DN65 flange 16bar DN65 PN10/16 type 161

€279.26
Profec Gate valve cast iron GG 25 powder coated DN65 DIN flange 10bar DN65 black PN10/16 type 200/N
Profec Gate valve cast iron GG 25 powder coated DN65 DIN flange 10bar DN65 black PN10/16 type 200/N

€249.78
Profec In-line Filter cast iron GG 25 epoxy coating DN65 DIN flange 16bar 1500micron stainless steel 304 blue PN10/16
Profec In-line Filter cast iron GG 25 epoxy coating DN65 DIN flange 16bar 1500micron stainless steel 304 blue PN10/16

€297.77
Profec Gate valve cast iron GG 25 varnished DN65 DIN flange 10bar DN65 black PN10/16 type 200
Profec Gate valve cast iron GG 25 varnished DN65 DIN flange 10bar DN65 black PN10/16 type 200

€260.73
Profec Ball NBR coated carbon steel DN65
Profec Ball NBR coated carbon steel DN65

€88.82

Product description

The Ball check valve with lifting device is a GGG40 cast iron ball check valve that is often used in the municipal and construction industry. It is also often used for machine building, water treatment and agricultural projects.

The Ball check valve is available with a lifting device to release the ball if it gets stuck during a backflow. It is available in a wide variety of DN sizes, with different flange connection sizes. Furthermore, it has a working pressure of 10 bar.

Profec is a professional brand, mostly used for different water related projects.

Read more Read less

Variants

Product number:
Price
Box qty
MSQ
Stock
No variants found
Adjust or clear the selected filters to see available variants.
0401928
€196.03
48
1
(55)
0401929
€233.62
1
1
(81)
0401930
€286.34
50
1
(261)
0401931
€357.44
40
1
(395)
0401933
€488.83
22
1
(23)
0401934
€659.51
14
1
(35)
0401935
€1,153.85
8
1
(16)
0401936
€2,253.36
4
1
(8)
0401937
€2,966.96
2
1
(2)
