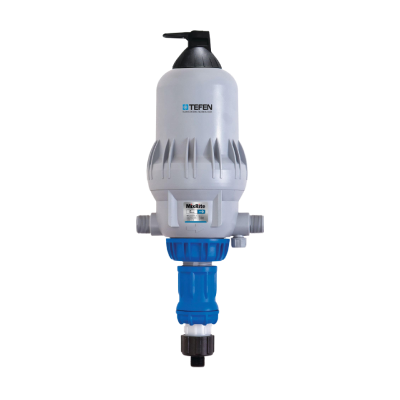

Find the Right MixRite for Your Flow Rate
Every MixRite operates on the same water-driven principle — simply choose the model that matches your flow rate. All units are supplied complete with a suction tube, mounting bracket and seal kit.
|
TF 2.5
MixRite 2.510–2,500 L/H · ¾"
The workhorse of the range. Ideal for greenhouse, nursery and small-field fertigation with a 0.3–4% dosing rate. View → |
TF 5
MixRite 5100–5,000 L/H · 1"
Steps up the flow for larger irrigation zones while keeping the same proportional accuracy and easy servicing. View → |
TF 10
MixRite 10100–10,000 L/H · 1½"
Built for high-volume agriculture and livestock water treatment where larger lines demand more throughput. View → |
|
TF 25
MixRite 25200–25,000 L/H · 2"
The largest in the range, delivering precise dosing across the highest flow rates for commercial systems. View → |
2.5 PO
MixRite 2.5 PO7–2,500 L/H · EPDM Seals
Red-sleeve poultry model with EPDM seals — suitable for dosing medication, vitamins and mineral supplements. View → |
TF 3.5
MixRite 3.510–3,500 L/H · ¾"
Versatile dosing pump for fertigation, water treatment and industrial chemical dosing. View → |
Engineered for accuracy, built to last
A MixRite uses the flow of water through the line as its only power source, delivering reliable, repeatable dosing without electricity or batteries.
|
Water-powered
No electricity, batteries or wiring required. Water flow powers the dosing piston. |
Proportional dosing
The dosing ratio automatically follows the water flow, maintaining a consistent concentration. |
Easy to service

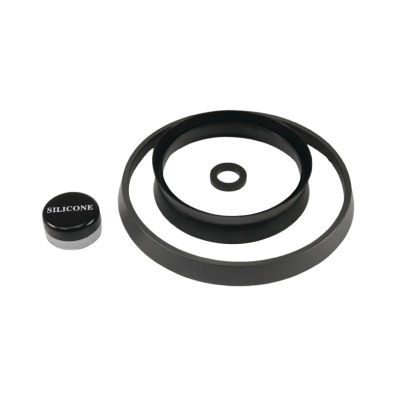

Replaceable seal kits and a simple hydraulic design minimise maintenance and downtime. |
|
Chemical options
NBR, EPDM and PVDF versions are available for different chemicals and applications. |
Adjustable rate
Select the required dosing ratio from 0.2% up to 4%, depending on the model. |
Complete in the box
Supplied with a suction tube, mounting bracket, support legs, seal kit and installation manual. |
One simple principle, perfect dosingAs water flows through the MixRite, it powers a piston that draws additive from your stock solution and injects it proportionally into the line. The result is a consistent concentration at any flow rate — no power, no calibration drift.
● Installs in-line, dual, or with a manual / controlled by-pass
● Dosing stays proportional even as demand changes
● Standard hydraulic On/Off operation across the range
● Manual and electric alternatives available on request
|
At a glance
● NBR seals for fertiliser solutions
● EPDM seals for livestock medication
● PVDF body for strong acids and disinfection
|
Anwendungen der Tefen MixRite™ Dosierpumpen
Das MixRite™-Prinzip löst eine grundlegende Herausforderung jedes Flüssigkeitsdosiersystems: die Aufrechterhaltung eines konstanten Einspritzverhältnisses bei wechselnden Durchflussmengen und Drücken. Das macht die Pumpe für sehr unterschiedliche Branchen einsetzbar, in denen diese Anforderung besteht.
In der Bewässerung und Fertigation dosiert MixRite™ Düngemittel, Pflanzenschutzmittel und andere wasserlösliche Produkte präzise direkt in die Bewässerungsleitung – für gleichmäßige Ausbringung und reduzierten Verbrauch.
Im Bereich Tiergesundheit ist die PO-Version (Geflügel) mit EPDM-Dichtungen für die kontinuierliche Dosierung von Medikamenten, Vitaminen und Desinfektionsmitteln über Tränkwassersysteme ausgelegt. Der Proportionalmechanismus gewährleistet eine gleichmäßige Konzentration für alle Tiere.
Industrielle Anwendungen umfassen die Chemieredosierung in Fahrzeugwaschanlagen, Schneidöleinspeisung sowie Sanierungs- und Hygieneapplikationen in Lebensmittelbetrieben und Krankenhäusern. Dedizierte Varianten für Autowäsche (CW) und Chlorierung (CL) sind verfügbar.
Pick your perfect fit
Match your connection size and flow rate to the right MixRite model in seconds. Every pump operates at 0.2–8.0 bar, so you can choose with confidence.
| Modell | Durchfluss | Dosierbereich | Druck | Anschluss | Anwendungsbereich | Dichtungsmaterial |
|---|---|---|---|---|---|---|
| MixRite LF-1000 | 10–1,000 l/h | 0.2% fest | 0.2–8 bar | ¾" BSPT | Gartenbau | NBR |
| MixRite TF1 Fixed | 20–1,000 l/h | 0.2% fest | 0.2–8 bar | ¾" BSPT | Gartenbau | NBR |
| MixRite 2.5 | 10–2,500 l/h | 0.3%–4% | 0.2–8 bar | ¾" BSPT | Bewässerung, Tierhaltung, Chlorierung, Industrie | NBR / Viton / AFLAS |
| MixRite 2.5 PO | 7–2,500 l/h | 0.3%–4% | 0.2–8 bar | ¾" BSPT | Tiergesundheit | EPDM |
| MixRite TF 3.5 | 10–3,500 l/h | 0.3%–10% | 0.2–8 bar | ¾" BSPT | Bewässerung, Tierhaltung, Chlorierung, Industrie / Autowäsche | NBR / Viton / AFLAS |
| MixRite TF5 | 100–5,000 l/h | 0.2%–5% | 1–8 bar | 1" BSPT | Bewässerung, Tierhhaltung, Chlorierung | NBR / EPDM / Viton |
| MixRite TF10 | 100–10,000 l/h | 0.2%–5% | 1–8 bar | 1½" BSPT | Bewässerung, Tierhaltung, Chlorierung | NBR / Viton + Hastelloy |
| MixRite TF25 | 200–25,000 l/h | 0.3%–2.5% | 1–8 bar | 2" BSPT | Bewässerung, Tierhaltung, Chlorierung | NBR / Viton + Hastelloy |

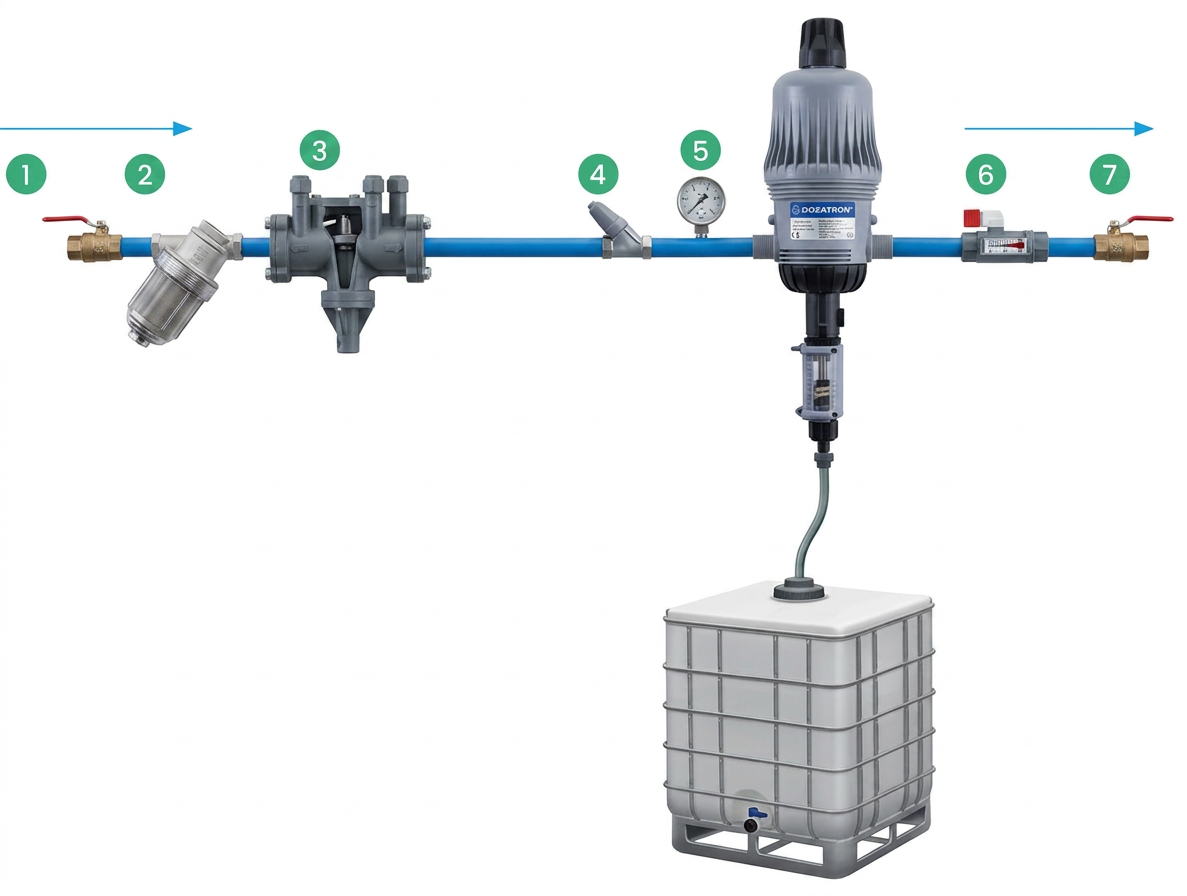

Standardinstallation inline – 7 Schritte
MixRite™ wird als Plug-and-Play-Einheit mit Installationsanleitung geliefert. Die nachstehende 7-Komponenten-Sequenz zeigt den empfohlenen Aufbau für zuverlässigen und sicheren Betrieb in allen Anwendungen.
|
1
Hauptabsperrventil
Vorgeschaltetes Absperrventil für Wartungsarbeiten ohne Entleerung des Gesamtsystems.
|
2
Filter 130 μm
120-Mesh-Filter (130 Mikron) vor der Dosierpumpe zum Schutz der Innenkomponenten.
|
3
Rückflussverhinderer
Verhindert das Rücksaugen von Additivkonzentrat in die Wasserversorgungsleitung.
|
4
Druckminderer
Empfohlen bei Betriebsdrücken über 8 bar zum Schutz der Dosierpumpe.
|
|
5
Druckmessgerät
Überprüfung des Betriebsdrucks im zulässigen Bereich und Systemüberwachung.
|
6
Antisiphon-Ventil
Erforderlich, wenn der Konzentratbehälter oberhalb der Pumpe positioniert ist oder Siphonierung möglich ist.
|
7
Betriebsventil
Nachgeschaltetes Absperrventil zur unabhängigen Unterbrechung der Dosierfunktion.
|
No specialist contractor neededInstallation instructions are included with every MixRite™ unit. The pump uses standard BSP, NPT or compression fittings, making integration with existing irrigation and water distribution systems straightforward. |
Minimum pressure 0.2 barMixRite™ pumps require a minimum operating pressure of 0.2 bar. Do not install pressure-reducing valves below this threshold and verify system pressure before commissioning. |

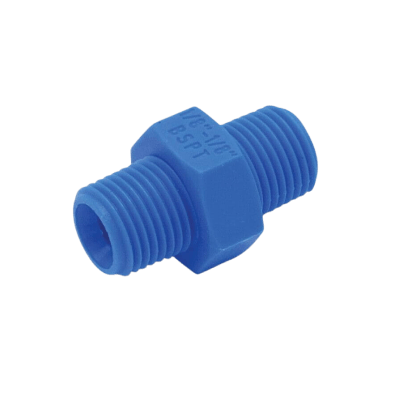

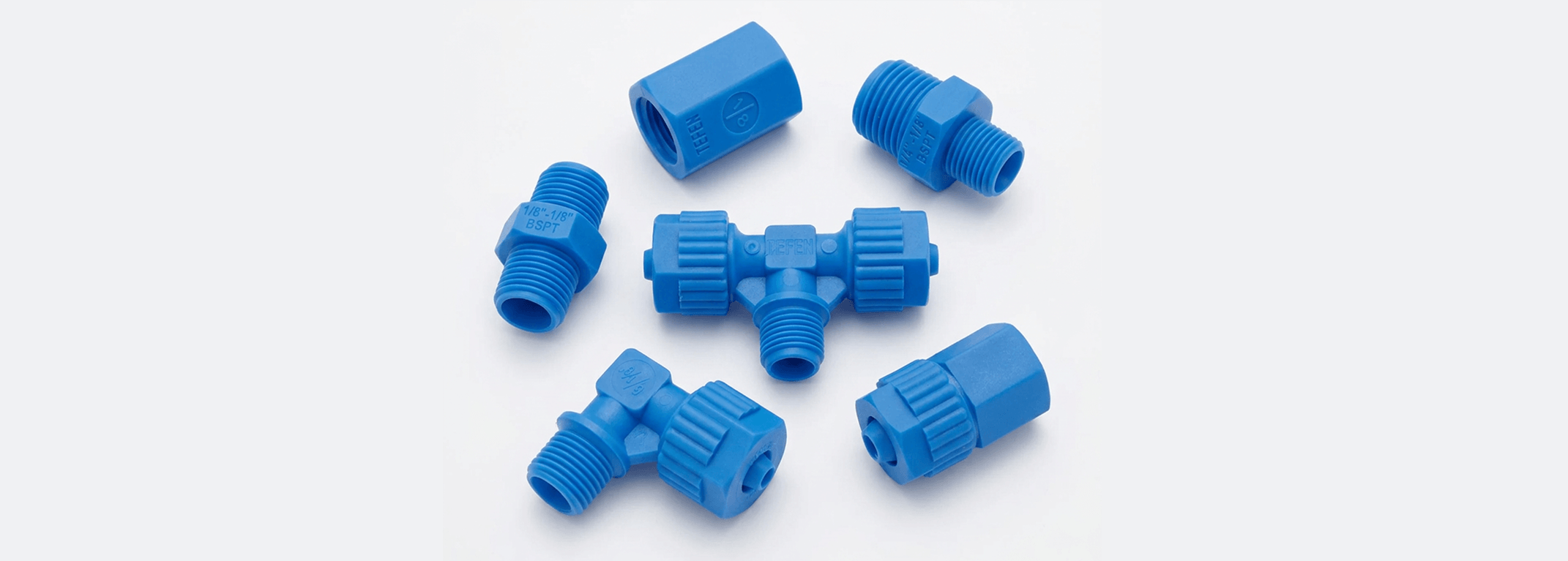

Tefen Rohrverschrauben & Verbinder
Für professionelle Bewässerungs-, Dosier- und Wasseraufbereitungssysteme steht ein umfangreiches Sortiment an Tefen-Verschraubungen bereit. Das Portfolio umfasst Nippel, Kupplungen, 90°-Bögen, T-Stücke, Stopfen, Reduzierungen und Schwenkverschraubungen in verschiedenen Gewindekonfigurationen und Größen. Gefertigt aus glasfaserverstärktem Polyamid bieten Tefen-Verschraubungen hohe mechanische Festigkeit, Langlebigkeit und zuverlässigen Betrieb bei Drücken bis 14 bar – geeignet für landwirtschaftliche und industrielle Anwendungen.
